Water softener Clack Legend Ideal 8 L - ref. CA-IDEAL-LEGEND-08

Water softener Clack Legend Ideal 8 L

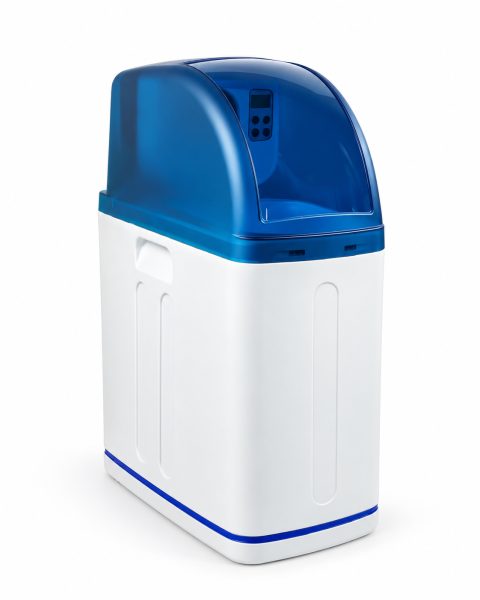

The Ideal is a monobloc water softener: resin tank and salt brine tank combined in a single housing, with no intermediate connections to be made on site. The 8 L format is the most compact in the range, low enough to fit under a sink or in a technical cupboard. It reduces water hardness, which is responsible for scale build-up in hot water cylinders, pipework and domestic appliances. Food-grade ion exchange resin and Clack Legend valve. White tank and blue cover.

Operation

Hard water passes through the resin bed, which captures calcium and magnesium and exchanges them for sodium: the water emerges softened. When the resin reaches saturation, the valve initiates brine regeneration, followed by rinsing, before returning the unit to service. The proportional mixing adjusts the residual hardness at outlet: water is not delivered at zero °fH, a proportion of raw water is allowed through to reach the target hardness.

Technical specifications

• Resin volume: 8 L
• Range: Ideal, monobloc
• Tank: 8 x 17
• Valve: Clack Legend
• Equipment: by-pass, proportional mixing, dual safety
• Angled 3/4 connectors supplied
• Colour: white tank, blue cover
• Indicative sizing: 2 to 3 people
• Assembly and distribution: DIMM

Why soften water

Hard water deposits scale in pipework, hot water cylinders and heating elements. Energy consumption increases, appliances wear out faster and taps become scaled up. By reducing hardness, the softener extends the life of equipment, limits excess energy consumption caused by scale and reduces the quantities of soaps and detergents required.

Day-to-day benefits

Fewer limescale marks on taps, showers and dishes. Softer laundry and cleaning products that work more effectively in smaller quantities. The water heater and washing machine maintain their efficiency longer, reducing energy consumption and maintenance calls. The unit is compact and quiet.

Installation and maintenance

Installed on the main water inlet, after the meter. The by-pass allows the unit to be isolated for maintenance without cutting off the property's water supply. The angled 3/4 connectors are supplied, which minimises additional purchases at installation. Commissioning involves setting the inlet hardness and regeneration parameters. Routine maintenance is limited to refilling the salt tank and periodic checks. The dual safety protects against tank overflow.

Choosing the right capacity

Resin volume is selected according to water hardness in °fH and the number of people in the household, not the number of draw-off points. An undersized unit regenerates too frequently, which wears the resin and increases salt consumption. The 8 L is designed for 2 to 3 people. With this format, salt reserve is limited: plan for more frequent replenishment than with an 18 or 25 L unit.

Quality and compliance

High-pressure FRP composite tank, food-grade ion exchange resin, Clack valve, materials in contact with water compliant with standards, CE design. Each unit is assembled and tested by DIMM, with warranty and after-sales service in Belgium and France.

Salt and consumables

The unit operates on regeneration salt in tablet form, to be maintained in the tank. Replenishment frequency depends on hardness and consumption. Periodic resin cleaner is recommended. Salt, hoses, connectors and maintenance parts compatible with the unit are in the DIMM catalogue.

Assembled and distributed by DIMM, specialist in water treatment for professionals in Belgium and France.
