Water softener Clack WS1CI Ideal 8 L - ref. CA-IDEAL-WS1CI-08

Water softener Clack WS1CI Ideal 8 L

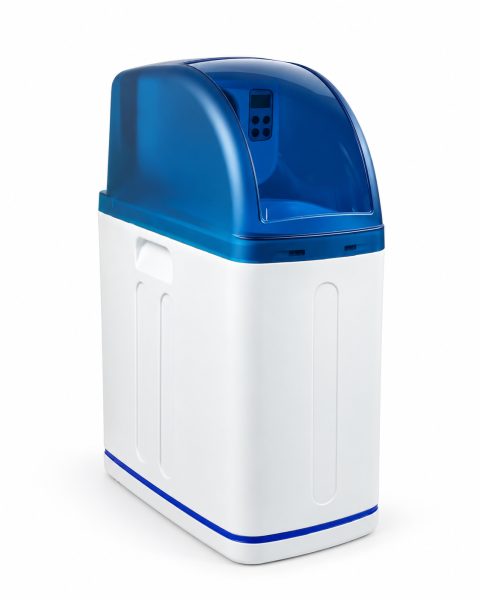

The Ideal is a single-unit water softener, with resin tank and salt tank combined in one housing. The 8 L format is the most compact in the range: 645 mm high by 225 mm wide, it fits under a sink or in a technical cupboard. White tank and blue cover. Clack WS1CI valve with volumetric regeneration.

Operation

Hard water passes through the resin bed, which captures calcium and magnesium and exchanges them for sodium: the water emerges softened. When the resin is saturated, the valve initiates brine regeneration. The integrated turbine measures the volume consumed and triggers the cycle by volume, not by clock: the unit regenerates only when necessary.

Clack WS1CI valve

• Electronic control with digital display
• Regeneration management in volumetric mode
• Fully adjustable cycles to optimise wash and rinse
• Turbine, mixing and bypass integrated
• Modular design that simplifies maintenance

The mixing allows adjustment of residual hardness at outlet rather than delivering zero °fH water. Dual safety protects against salt tank overflow.

Specifications

• Resin volume: 8 L
• Range: Ideal, single-unit
• Tank: 8 x 17
• Valve: Clack WS1CI, volumetric
• Equipment: bypass, mixing, dual safety
• Angled connectors 3/4" supplied
• Dimensions: 645 x 225 x 440 mm (H x W x D)
• Colours: white tank, blue cover
• Indicative sizing: 2 to 3 people

Why soften water

Hard water deposits scale in pipes, tanks and heating elements. Energy consumption increases, appliances wear faster and taps become scaled up. By reducing hardness, the softener extends the life of equipment and reduces the quantities of soaps and detergents required.

Installation and maintenance

Installed on the main water inlet, after the meter. The bypass allows the unit to be isolated for maintenance without cutting off the water supply. Angled connectors 3/4" are supplied, which limits additional purchases at installation. Commissioning consists of setting the inlet hardness and regeneration parameters. Routine maintenance is limited to filling the salt tank and periodic checks.

Salt and consumables

Regeneration salt in pellet form, to be maintained in the tank. The replenishment rate depends on hardness and consumption. Salt, hoses, connectors and maintenance parts compatible with this unit are in the DIMM catalogue.

Assembled and distributed by DIMM, specialist in water treatment for professionals in Belgium and France.

Long description - Ideal 18 L

Water softener Clack WS1CI Ideal 18 L

The Ideal is a single-unit water softener, with resin tank and salt tank combined in one housing. The 18 L format has the same footprint as the 8 L, 225 mm wide by 440 mm deep, for a height of 1109 mm: it fits into a narrow laundry room or technical space. White tank and blue cover. Clack WS1CI valve with volumetric regeneration.

Operation

Hard water passes through the resin bed, which captures calcium and magnesium and exchanges them for sodium: the water emerges softened. When the resin is saturated, the valve initiates brine regeneration. The integrated turbine measures the volume consumed and triggers the cycle by volume, not by clock.

Clack WS1CI valve

• Electronic control with digital display
• Regeneration management in volumetric mode
• Fully adjustable cycles to optimise wash and rinse
• Turbine, mixing and bypass integrated
• Modular design that simplifies maintenance

The mixing allows adjustment of residual hardness at outlet. Dual safety protects against salt tank overflow.

Specifications

• Resin volume: 18 L
• Range: Ideal, single-unit
• Tank: 8 x 35
• Valve: Clack WS1CI, volumetric
• Equipment: bypass, mixing, dual safety
• Dimensions: 1109 x 225 x 440 mm (H x W x D)
• Colours: white tank, blue cover

Why soften water

Hard water deposits scale in pipes, tanks and heating elements. Energy consumption increases, appliances wear faster and taps become scaled up. By reducing hardness, the softener extends the life of equipment and reduces the quantities of soaps and detergents required.

Choosing between the 8 L and 18 L

Both models share the same footprint and the same valve. The choice is made based on water hardness in °fH and the number of people in the household. The 8 L covers a small home and fits under a sink. The 18 L spaces regenerations over a higher-consumption household, which reduces salt and water consumption per unit volume treated.

Installation and maintenance

Installed on the main water inlet, after the meter, with the bypass to isolate the unit during maintenance. Commissioning by setting the inlet hardness and regeneration parameters. Routine maintenance limited to filling the salt tank and periodic checks.

Salt and consumables

Regeneration salt in pellet form, to be maintained in the tank. Salt, hoses, connectors and maintenance parts compatible with this unit are in the DIMM catalogue.

Assembled and distributed by DIMM, specialist in water treatment for professionals in Belgium and France.
