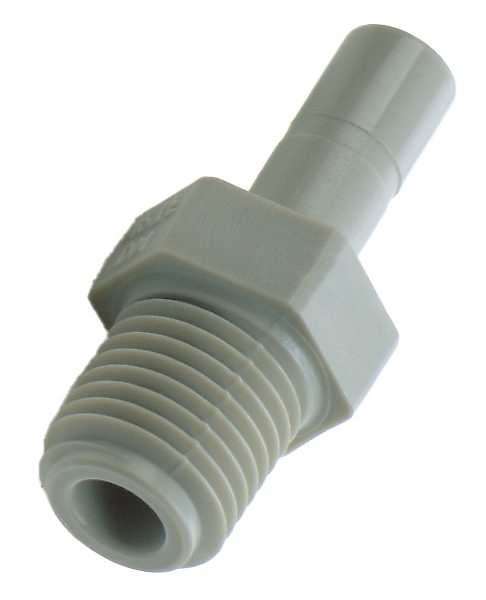

Stem Adapter 3/8" Stem x 3/8" NPTF - DMfit AASA0606

Stem adapter 3/8" stem × 3/8" NPTF

The AASA0606 combines two ends of different natures: a 3/8" plain stem on one side, a 3/8" NPTF male thread on the other.

The stem principle

The stem is not a tube and not a thread. It is a cylindrical end machined to the exact diameter of 3/8" tubing, designed to push into a push-fit connector exactly as a tube would.

The benefit is that it removes a length of tubing. Without a stem, connecting a threaded port to a quick-connect fitting takes a threaded adapter, a short piece of tube and a second fitting. With it, one part bridges the gap: fewer connections, fewer potential leak points, and a markedly more compact assembly.

The NPTF thread

NPTF (National Pipe Taper Fuel, known as Dryseal) is a tapered thread to the American standard. It seals on the threads themselves: the taper wedges into the port and the deformation of the thread flanks creates the contact.

Two practical consequences. Sealant is always required, PTFE tape or pipe sealant, applied in the direction of tightening. And do not overtighten: on a polymer port the taper acts as a wedge and can split the receiving thread. Hand-tight plus a quarter turn is generally enough.

Watch the standard. NPTF is American, BSP is European. Thread angle and pitch differ (60° against 55°): they are not interchangeable. An NPTF male in a BSP port engages only a few threads and will eventually leak. Always check the standard of the receiving port before ordering.

Where to use it

On reverse osmosis systems, to connect a membrane, tank or faucet to a threaded port without an intermediate length of tubing. On valves, solenoid valves, pressure gauges and filter heads with NPTF threads. And anywhere space is tight and every connection removed is one less potential leak.

Fitting

Thread side: apply PTFE, screw in by hand, finish with a quarter turn.

Stem side: push fully home into the push-fit connector, then pull lightly to check engagement. Sealing takes place on the O-ring of the receiving fitting, check that the stem is clean and unscratched; a single lengthwise scratch is enough to create a leak path.

Finally, check that both the stem and the receiving fitting are 3/8" imperial and not 10 mm metric: the two diameters are close but not interchangeable.
