John Guest male connector 1/4" tube x 1/8" BSPT - PI010801S

Straight connector 1/4" tube × 1/8" BSPT

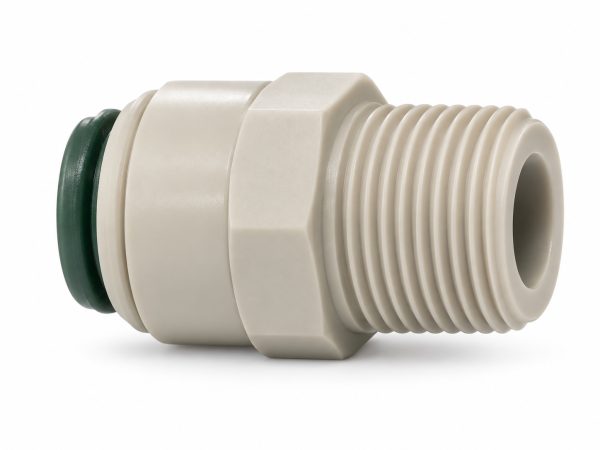

Simple union John Guest connecting a semi-rigid 1/4" tube to a female 1/8" BSP thread. On the tube side, push-fit connection: the tube is pushed in until it bottoms out, the compression ring locks it, and the O-ring ensures the seal. On the threaded side, a male 1/8" BSPT tapered thread. Reference PI010801S.

The 1/8", an instrument thread

The 1/8" is the smallest of the common threads found on water treatment installations. It is not found on distribution lines but on components: pressure gauges, pressure switches, air vents, miniature valves, dosing pump bodies, pressure taps.

This connector is therefore the link between the instrument and the 1/4" tube line of the installation.

BSPT: a tapered thread

BSPT (British Standard Pipe Taper, ISO 7/1 standard) is a tapered thread. Unlike a parallel thread that seals on a flat surface or a gasket, BSPT seals on the thread flanks themselves: the taper wedges into the female thread and tightening creates the contact.

Two practical consequences.

A sealant is always required, PTFE thread tape or pipe dope, applied in the direction of tightening.

And never over-tighten. This is more critical on 1/8" than on 1/4" or 3/8": the material around such a small thread is thin, and the taper acts like a wedge. Excessive tightening splits the receiving body, often a pressure gauge or valve body that costs far more than the connector. Hand-tight plus one quarter turn, no more.

Do not confuse with NPTF

BSPT is the European standard, NPTF is the American one. Both are tapered, but the thread angles and pitches differ, 55° versus 60°. They are not interchangeable.

A male BSPT screwed into an NPTF female thread engages only a few thread flanks. The assembly may seem secure when tightened, then leaks in service, or strips the threads of the receiving component. This is the most costly mistake in this connector family, because it is not visible during assembly.

Always verify the standard of the receiving thread before ordering, not just its size. This connector is available in NPTF version under a different reference.

The John Guest push-fit connection

On the tube side, the principle is what made John Guest's reputation: no tool, no clip, no tightening.

The tube is pushed in, the stainless steel bite ring holds it mechanically, the O-ring provides the seal. The connection can be disconnected and reconnected without damaging the connector, which matters on equipment that is opened for maintenance.

Where to use it

On reverse osmosis units and water treatment installations: pressure gauges and pressure taps, pressure switches, valves and solenoid valves of small size, dosing pumps, and any component with a 1/8" BSP port that needs to be connected to a 1/4" tube line.

Assembly

On the threaded side: apply thread tape in the direction of tightening, screw by hand, finish with one quarter turn.

On the tube side: cut square with a tube cutter. An angled cut, or one crushed with pliers, prevents the O-ring from seating uniformly, and is the leading cause of leaks with this type of connection. Push in until it bottoms out, then pull slightly to verify engagement.

To disconnect: shut off the water, depressurize, push the ring towards the connector body and withdraw the tube.

Finally, verify that the tube is 1/4" imperial (6.35 mm) and not 6 mm metric. The two sizes are close but incompatible: a metric tube in an imperial connector is not properly gripped by the ring and will leak under pressure.
