Male Elbow 1/4" Tube x 1/8" NPTF - ME

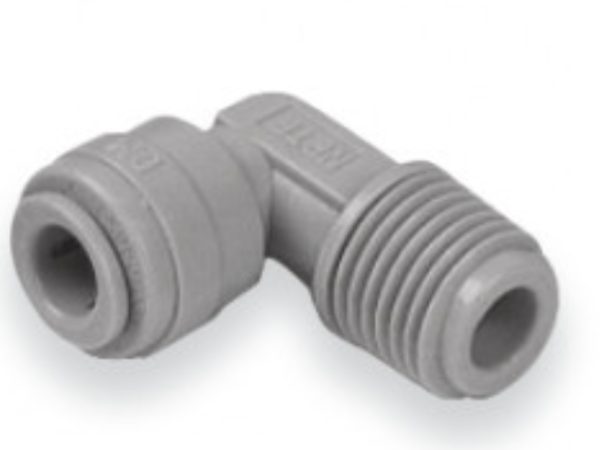

Male elbow 1/4" tube × 1/8" NPTF

90° fitting combining a 1/4" push-fit connection on the tube side with a 1/8" NPTF male thread on the threaded side.

On the tube side the principle is standard: the tube pushes fully home, the collet locks it and the O-ring seals it. On the thread side, the fitting screws directly into the equipment port.

1/8", an instrument thread

1/8" is the smallest of the common threads on water treatment installations. You do not find it on distribution lines but on components: pressure gauges, pressure switches, bleed valves, miniature valves, dosing pump bodies, pressure tappings.

It is a compact port, often set into an already crowded housing. Hence the value of an elbow fitting.

Why an elbow rather than a straight fitting

A straight fitting on a piece of equipment forces the tube to leave along the axis of the port. The tube then has to be bent to send it where it needs to go, and semi-rigid tubing only tolerates a limited bend radius.

Forced beyond it, the tube goes oval or kinks: the bore narrows, flow drops, and the tube fatigues then cracks at the bend.

The elbow solves this at source. It turns the line 90° right at the port, with the full bore preserved, and allows the tube to be run flat against a wall or enclosure base. On a gauge or pressure switch mounted in a tight enclosure, it is often the only workable arrangement.

The NPTF thread

NPTF (National Pipe Taper Fuel, known as Dryseal) is a tapered thread to the American standard. It seals on the threads themselves: the taper wedges into the port and the deformation of the thread flanks creates the contact.

Two practical consequences. Sealant is always required, PTFE tape or pipe sealant, applied in the direction of tightening. And above all, do not overtighten. This point is even more critical in 1/8" than in 1/4" or 3/8": the material around such a small port is thin, and the taper acts as a wedge. Excessive tightening splits the receiving housing.

Hand-tight plus a quarter turn, no more.

Watch the standard. NPTF is American, BSP European. Thread angle and pitch differ, 60° against 55°, and they are not interchangeable. An NPTF male in a BSP port engages only a few threads and will eventually leak. Always check the standard of the receiving port before ordering.

Where to use it

On pressure gauges and pressure tappings, pressure switches, small valves and solenoid valves, dosing pumps, and on any component with a 1/8" NPTF port that has to be connected to a 1/4" tubing run.

Fitting

Thread side: apply PTFE in the direction of tightening, screw in by hand, finish with a quarter turn. Orient the elbow correctly before the final tightening, backing it off to re-aim it compromises the seal.

Tube side: cut square with a tube cutter, push fully home, pull lightly to check engagement.

Finally, check that the tube really is 1/4" imperial (6,35 mm) and not 6 mm metric: the two diameters are close but not interchangeable.
