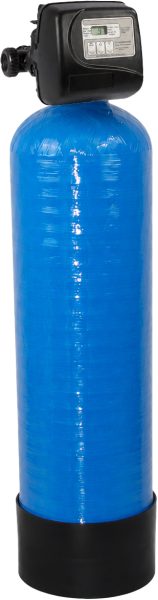

Turbidex filter on Clack WS1TC 90 L bottle - ref. CLACK-WS1TC-TURBIDEX-90

Overview

Filter on bottle filled with Turbidex media, on Clack valve (ref. CLACK-WS1TC-TURBIDEX-90). Bottle 16X65. Valve WS1. This filtration station reduces turbidity and fine particles at the point of entry to protect the entire installation. Supplied ready to install (filled bottle + valve + distribution), it treats mains water, well water or borehole water.

Filtration principle

Turbidex is a lightweight mineral media (based on clinoptilolite) highly effective against turbidity and fine particles. At equal flow rate, it retains finer particles than sand whilst generating lower pressure drop and consuming less backwash water. Ideal for clarifying turbid water at the point of entry.

Turbidex media

The bottle is filled with Turbidex media on a gravel/flint support bed that distributes water and retains fines. Media volume: 84.9L. Depending on the media, the bed is backwashed (charcoal/Ecomix) or recharged when consumed (calcite/Corosex/Everzit), to maintain performance over time.

Valve & operation

The WS1 valve automatically controls cycles: service (filtration), backwash, rinse and return to service (and salt regeneration for Ecomix). Triggering is time-based or volume-based depending on the model; an integrated bypass isolates the filter without cutting off water.

Sizing & installation

Choose the size (bottle 16X65) according to peak flow rate and water quality. Provide a drain outlet for backwash and electrical supply for the valve. Install in a frost-free location on level ground; a sediment pre-filter upstream is recommended to protect the media.

Economy & ecology

Treating water at the point of entry protects the entire installation: less corrosion (pH correction), more pleasant water (charcoal) and preserved equipment, therefore fewer replacements and maintenance. Backwash uses only water (and salt for Ecomix), with no polluting additives: effective treatment that respects the resource.

Choosing correctly

To choose correctly, have your water analysed (pH, TAC, chlorine, iron) and estimate peak flow rate. Media is chosen according to need: charcoal (taste/chlorine), calcite/Corosex/Everzit (pH correction), Ecomix (multi-parameter). The DIMM team helps you size the bottle, valve and pre-treatment.

Key characteristics

DIMM service & support

DIMM designs, assembles and ships turnkey bottle filters (Aquacarb/Carbsorb charcoal, pH correction Calcite/Corosex/Everzit, multilayer Ecomix) on Clack valves, as well as hoses and accessories. Our teams analyse your water, size the bottle and valve and advise you on suitable media and pre-treatment. Each reference is identified by its article code, with manufacturer warranty, spare parts and replacement media available. From advice to commissioning, we support installers and individuals, from sizing the bottle and valve to choosing media and maintenance follow-up, with a stock of replacement media and parts immediately available.

Good to know

Media is chosen according to water analysis: charcoal for taste and chlorine, calcite/Corosex to raise aggressive pH, Ecomix for multi-problem well water. Plan for backwash (sufficient flow and drainage) and, for pH correction media, periodic level monitoring and recharging as they are consumed. An upstream sediment pre-filter protects the media and spaces out backwashes, whilst regular water analysis allows valve settings to be adjusted.

Applications

These bottle filters are installed at the point of entry (protecting the entire house or building), in residential, tertiary and agricultural settings. Depending on the media, they refine taste, correct pH or treat multiple parameters. They combine with sediment pre-filtration and, if needed, aeration, for healthy water and protected plumbing all year round.

Warranty & reordering

Station assembled and distributed by DIMM, identified by its Business Central article code for reliable ordering and simple reordering. It benefits from manufacturer warranty; the valve, bottle, replacement media and compatible hoses remain available in the catalogue to support the installation throughout its lifetime.
