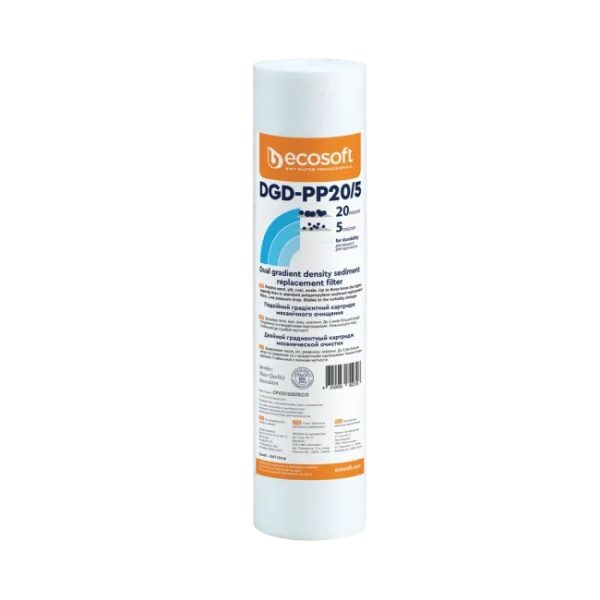

Ecosoft Sediment Cartridge 2.5"×10" Dual Gradient 20/5 µm

Ecosoft sediment cartridge 2.5" × 10", dual gradient 20/5 µm

The CPV2510205ECO cartridge is a polypropylene pre-filter cartridge in the standard 2.5" × 10" format. It removes suspended particles from water: rust, sand, scale and silt.

The dual gradient principle

Unlike a single-porosity cartridge, this one filters in two successive stages. The outer layer at 20 µm stops the coarse particles; the inner layer at 5 µm retains the finer ones. Dirt is distributed through the full thickness of the media instead of blinding the surface.

Two direct consequences: a dirt-holding capacity around three times higher than a standard PP cartridge, meaning less frequent replacement, and a lower pressure drop sustained over time, flow stays stable even when raw water turbidity varies.

Where to use it

As pre-filtration on mains, well or rainwater supplies. As protection upstream of a softener, RO system, UV lamp or activated carbon cartridge, whose service life it extends significantly by absorbing the sediment load.

Specifications

Format 2.5" × 10" (height 250 ± 2 mm, outside diameter 60 ± 1 mm), media dual gradient polypropylene 20 µm / 5 µm, recommended flow 8 L/min, water temperature +3 °C to +43 °C, reference CPV2510205ECO.

Order from DIMM

A B2B water treatment distributor for over 30 years and an Ecosoft distributor, DIMM supplies installers and system integrators across Belgium and France. Log in to your trade account for your pricing and stock availability.
